Custom Spark images#

Dell Data Processing Engine (DDPE) supports custom Spark images. Custom images let you package job requirements and run jobs consistently across environments. You can add custom or third‑party libraries and system packages, define Python environments, pin package versions, use supported open‑source Spark variants, and inject environment variables and default Spark configurations, such as spark-defaults.conf.

Starburst Spark base image#

DDPE provides a pre-configured Starburst Spark base image that you can use as the foundation for your custom images. The base image is available at:

public.ecr.aws/starburstdata/dell-aidp/starburst-spark:<tag>

The image is based on spark:3.5.6-scala2.12-java17-python3-ubuntu and includes essential tools and utilities for advanced Spark and data ecosystem integrations.

Included tools and utilities#

The base image includes the following tools to enhance monitoring and logging capabilities:

  • Lumberjack: A utility configured to stream container logs to a central logging system, ensuring traceability and easy debugging within the DDPE environment.

  • getGpuResources: A script used to detect Nvidia graphics cards.

Pre-installed libraries (JARs)#

The image contains a comprehensive set of libraries, including support for GPU-accelerated computing and various data connectors and frameworks.

Rapids Accelerator JARs#

The image includes libraries for the NVIDIA RAPIDS Accelerator for Apache Spark, supporting both ARM64 and AMD64 architectures based on the 25.12 RAPIDS version. These libraries enable Spark to leverage GPUs for significant performance gains in data processing tasks.

Core dependency JARs#

The following is a list of key JAR files included in the Starburst Spark base image, covering components like Hadoop, Hive, various data formats, and foundational utilities. Expand Core dependencies to view included libraries grouped by type:

Core dependencies
Apache Calcite libraries

  • calcite-core-1.16.0.jar

  • calcite-druid-1.16.0.jar

  • calcite-linq4j-1.16.0.jar

Apache Commons libraries

  • commons-beanutils-1.9.3.jar

  • commons-cli-1.2.jar

  • commons-codec-1.15.jar

  • commons-collections-3.2.2.jar

  • commons-collections4-4.1.jar

  • commons-compiler-2.7.6.jar

  • commons-compress-1.19.jar

  • commons-configuration2-2.1.1.jar

  • commons-crypto-1.0.0.jar

  • commons-daemon-1.0.13.jar

  • commons-dbcp-1.4.jar

  • commons-io-2.6.jar

  • commons-lang-2.6.jar

  • commons-lang3-3.19.0.jar

  • commons-logging-1.2.jar

  • commons-math3-3.1.1.jar

  • commons-net-3.6.jar

  • commons-pool-1.5.4.jar

Apache Curator libraries

  • curator-client-2.12.0.jar

  • curator-framework-2.12.0.jar

  • curator-recipes-2.12.0.jar

Apache Hadoop libraries

  • hadoop-annotations-3.1.0.jar

  • hadoop-auth-3.1.0.jar

  • hadoop-common-3.1.0.jar

  • hadoop-hdfs-2.2.0.jar

  • hadoop-yarn-api-3.1.0.jar

  • hadoop-yarn-common-3.1.0.jar

  • hadoop-yarn-registry-3.1.0.jar

  • hadoop-yarn-server-applicationhistoryservice-3.1.0.jar

  • hadoop-yarn-server-common-3.1.0.jar

  • hadoop-yarn-server-resourcemanager-3.1.0.jar

  • hadoop-yarn-server-web-proxy-3.1.0.jar

Apache Hive libraries

  • hive-classification-3.1.3.jar

  • hive-common-3.1.3.jar

  • hive-exec-3.1.3.jar

  • hive-llap-client-3.1.3.jar

  • hive-llap-common-3.1.3.jar

  • hive-llap-tez-3.1.3.jar

  • hive-metastore-3.1.3.jar

  • hive-serde-3.1.3.jar

  • hive-service-rpc-3.1.3.jar

  • hive-shims-0.23-3.1.3.jar

  • hive-shims-3.1.3.jar

  • hive-shims-common-3.1.3.jar

  • hive-shims-scheduler-3.1.3.jar

  • hive-standalone-metastore-3.1.3.jar

  • hive-storage-api-2.7.0.jar

  • hive-upgrade-acid-3.1.3.jar

  • hive-vector-code-gen-3.1.3.jar

AWS libraries

  • aws-java-sdk-bundle-1.12.793.jar

Custom images libraries

  • image-additions-294-479-e.1.jar

  • image-modifications-294-479-e.1.jar

Data format libraries

  • opencsv-2.3.jar

  • orc-core-1.5.1.jar

  • orc-shims-1.5.1.jar

  • paranamer-2.7.jar

  • parquet-hadoop-bundle-1.10.0.jar

  • protobuf-java-2.5.0.jar

  • re2j-1.1.jar

  • sketches-core-0.9.0.jar

Database connection libraries

  • HikariCP-6.3.0.jar

  • HikariCP-java7-2.4.12.jar

Database driver libraries

  • mssql-jdbc-6.2.1.jre7.jar

DataNucleus libraries

  • datanucleus-api-jdo-4.2.4.jar

  • datanucleus-core-4.1.17.jar

  • datanucleus-rdbms-4.1.19.jar

  • derby-10.14.1.0.jar

Delta Lake libraries

  • delta-spark_2.12-3.3.0.jar

  • delta-storage-3.3.0.jar

Development and testing libraries

  • jline-0.9.94.jar

  • joda-time-2.14.0.jar

  • joni-2.1.11.jar

  • jpam-1.1.jar

  • jsch-0.1.54.jar

  • json-1.8.jar

  • json-io-2.5.1.jar

  • json-smart-2.3.jar

  • jsp-api-2.1.jar

  • jspecify-1.0.0.jar

  • jsr305-3.0.2.jar

  • jsr311-api-1.1.1.jar

  • jta-1.1.jar

  • junit-3.8.1.jar

Google libraries

  • guava-33.5.0-jre.jar

  • guice-3.0.jar

  • guice-assistedinject-7.0.0.jar

  • guice-servlet-7.0.0.jar

Hadoop AWS libraries

  • hadoop-aws-3.3.4.jar

HBase libraries

  • hbase-client-2.0.0-alpha4.jar

  • hbase-common-2.0.0-alpha4.jar

  • hbase-hadoop-compat-2.0.0-alpha4.jar

  • hbase-hadoop2-compat-2.0.0-alpha4.jar

  • hbase-metrics-2.0.0-alpha4.jar

  • hbase-metrics-api-2.0.0-alpha4.jar

  • hbase-protocol-2.0.0-alpha4.jar

  • hbase-protocol-shaded-2.0.0-alpha4.jar

  • hbase-shaded-miscellaneous-1.0.1.jar

  • hbase-shaded-netty-1.0.1.jar

  • hbase-shaded-protobuf-1.0.1.jar

Hudi libraries

  • hudi-spark3.5-bundle_2.12-1.0.2.jar

Iceberg libraries

  • iceberg-aws-bundle.jar

  • iceberg-aws-bundle-nvidia(1.6.1).jar

  • iceberg-spark-runtime(1.8.0).jar

  • iceberg-spark-runtime-nvidia.jar

Jackson (JSON) libraries

  • jackson-annotations-2.20.jar

  • jackson-core-2.20.1.jar

  • jackson-core-asl-1.9.13.jar

  • jackson-databind-2.20.1.jar

  • jackson-jaxrs-1.9.2.jar

  • jackson-jaxrs-base-2.20.1.jar

  • jackson-jaxrs-json-provider-2.20.1.jar

  • jackson-mapper-asl-1.9.13.jar

  • jackson-module-jaxb-annotations-2.20.1.jar

  • jackson-xc-1.9.2.jar

Java EE/Jakarta libraries

  • j2objc-annotations-3.1.jar

  • jakarta.activation-api-1.2.2.jar

  • janino-2.7.6.jar

  • java-util-1.9.0.jar

  • javax.inject-1.jar

  • javax.jdo-3.2.0-m3.jar

  • javax.servlet-api-3.1.0.jar

  • javolution-5.5.1.jar

  • jaxb-api-2.2.11.jar

  • jaxb-impl-2.2.3-1.jar

  • jcodings-1.0.18.jar

  • jdo-api-3.0.1.jar

Jersey libraries

  • jersey-client-1.19.jar

  • jersey-core-1.19.jar

  • jersey-guice-1.19.jar

  • jersey-json-1.19.jar

  • jersey-server-1.19.jar

  • jersey-servlet-1.19.jar

  • jettison-1.1.jar

Jetty libraries

  • jetty-http-12.1.4.jar

  • jetty-io-12.1.4.jar

  • jetty-rewrite-12.1.4.jar

  • jetty-security-12.1.4.jar

  • jetty-server-12.1.4.jar

  • jetty-servlet-9.3.20.v20170531.jar

  • jetty-util-12.1.4.jar

  • jetty-util-ajax-12.1.4.jar

  • jetty-webapp-9.3.20.v20170531.jar

  • jetty-xml-12.1.4.jar

Kerberos libraries

  • kerb-admin-1.0.1.jar

  • kerb-client-1.0.1.jar

  • kerb-common-1.0.1.jar

  • kerb-core-1.0.1.jar

  • kerb-crypto-1.0.1.jar

  • kerb-identity-1.0.1.jar

  • kerb-server-1.0.1.jar

  • kerb-simplekdc-1.0.1.jar

  • kerb-util-1.0.1.jar

  • kerby-asn1-1.0.1.jar

  • kerby-config-1.0.1.jar

  • kerby-pkix-1.0.1.jar

  • kerby-util-1.0.1.jar

  • kerby-xdr-1.0.1.jar

  • leveldbjni-all-1.8.jar

  • libfb303-0.9.3.jar

  • libthrift-0.9.3.jar

Logging libraries

  • log4j-1.2.16.jar

  • log4j-1.2-api-2.25.2.jar

  • log4j-api-2.25.2.jar

  • log4j-core-2.25.2.jar

  • log4j-slf4j-impl-2.25.2.jar

  • log4j-web-2.25.2.jar

  • memory-0.9.0.jar

Metrics libraries

  • metrics-core-3.1.0.jar

  • metrics-json-3.1.0.jar

  • metrics-jvm-3.1.0.jar

Misc. and format libraries

  • dnsjava-2.1.7.jar

  • dropwizard-metrics-hadoop-metrics2-reporter-0.1.2.jar

  • ehcache-3.3.1.jar

  • error_prone_annotations-2.44.0.jar

  • esri-geometry-api-2.0.0.jar

  • failureaccess-1.0.3.jar

  • fastutil-6.5.6.jar

  • findbugs-annotations-1.3.9-1.jar

  • flatbuffers-1.2.0-3f79e055.jar

  • fst-2.50.jar

  • geronimo-jcache_1.0_spec-1.0-alpha-1.jar

  • groovy-all-2.4.11.jar

  • gson-2.2.4.jar

Nessie libraries

  • nessie-spark-extensions-3.5_2.12-0.102.5.jar

Networking and HTTP libraries

  • hppc-0.7.2.jar

  • htrace-core-3.2.0-incubating.jar

  • htrace-core4-4.1.0-incubating.jar

  • httpclient-4.5.14.jar

  • httpcore-4.4.1.jar

  • ivy-2.4.0.jar

Netty libraries

  • netty-3.7.0.Final.jar

  • netty-buffer-4.1.17.Final.jar

  • netty-common-4.1.17.Final.jar

  • nimbus-jose-jwt-10.2.jar

Security and utilities libraries

  • accessors-smart-1.2.jar

  • aircompressor-0.10.jar

  • ant-1.9.1.jar

  • ant-launcher-1.9.1.jar

  • antlr-runtime-3.5.2.jar

  • aopalliance-1.0.jar

  • arrow-format-0.8.0.jar

  • arrow-memory-0.8.0.jar

  • arrow-vector-0.8.0.jar

  • asm-9.9.jar

  • audience-annotations-0.5.0.jar

  • avatica-1.11.0.jar

  • avro-1.8.2.jar

  • bonecp-0.8.0.RELEASE.jar

SLF4J logging libraries

  • slf4j-api-2.0.17.jar

  • slf4j-log4j12-1.7.25.jar

  • snappy-java-1.1.1.3.jar

  • sqlline-1.3.0.jar

  • ST4-4.0.4.jar

Spark Connect libraries

  • spark-connect_2.12-3.5.7.jar

Transaction management libraries

  • tephra-api-0.6.0.jar

  • tephra-core-0.6.0.jar

  • tephra-hbase-compat-1.0-0.6.0.jar

  • token-provider-1.0.1.jar

  • transaction-api-1.1.jar

Trino libraries

  • trino-aws-proxy-spark3-20251205-6b1db67.jar

Twill libraries

  • twill-api-0.6.0-incubating.jar

  • twill-common-0.6.0-incubating.jar

  • twill-core-0.6.0-incubating.jar

  • twill-discovery-api-0.6.0-incubating.jar

  • twill-discovery-core-0.6.0-incubating.jar

  • twill-zookeeper-0.6.0-incubating.jar

XML/Stax libraries

  • stax-api-1.0.1.jar

  • stax2-api-3.1.4.jar

  • woodstox-core-5.0.3.jar

  • xmlenc-0.52.jar

  • xz-1.5.jar

ZooKeeper libraries

  • zookeeper-3.4.6.jar

Pre-installed Python libraries#

The following is a list of key Python libraries included in the Starburst Spark base image. Expand Pre-installed Python libraries to view included libraries grouped by type:

Pre-installed Python libraries
Cloud/Storage access

  • boto3-1.36.25

  • six-1.17.0

  • statsmodels-0.14.4

  • tzdata-2024.2

  • xlrd-2.0.1

Machine learning and AI

  • absl-py-2.3.0

  • asttokens-1.6.3

  • flatbuffers-24.12.23

  • gast-0.6.0

  • google-pasta-0.2.0

  • grpcio-1.70.0

  • h5py-3.12.1

  • keras-3.11.3

  • libclang-18.1.1

  • ml-dtypes-0.4.1

  • namex-0.0.8

  • opt_einsum-3.4.0

  • optree-0.13.1

  • protobuf-5.29.5

  • tensorflow-2.18.0

  • tensorflow-io-gcs-filesystem-0.37.1

  • termcolor-2.5.0

  • wrapt-1.17.2

RAPIDS (GPU acceleration)

  • cudf-cu12-25.12.0

  • dask-cudf-cu12-25.12.0

  • pylibcudf-cu12-25.12.0

  • cuml-cu12-25.12.0

  • cugraph-cu12-25.12.0

  • nx-cugraph-cu12-25.12.0

  • cufilter-cu12-25.12.0

  • cucim-cu12-25.12.0

  • cuvs-cu12-25.12.0

  • raft-dask-cu12-25.12.0

  • pylibraft-cu12-25.12.0

Utilities and networking

  • aiohttp-3.13.1

  • aioitertools-0.12.0

  • aiosignal-1.4.0

  • async-timeout-5.0.1

  • attrs-24.3.0

  • certifi-2024.12.14

  • cramjam-2.9.1

  • charset-normalizer-3.4.1

  • frozenlist-1.5.0

  • fsspec-2024.12.0

  • greenlet-3.1.1

  • idna-3.10

  • joblib-1.4.2

  • multidict-6.1.0

  • packaging-24.2

  • requests-2.32.5

  • typing_extensions-4.12.2

  • urllib3-2.5.0

  • yarl-1.18.3

Documentation and logging

  • Markdown-3.7

  • markdown-it-py-3.0.0

  • MarkupSafe-3.0.2

  • mdurl-0.1.2

  • Pygments-2.19.1

  • rich-13.9.4

  • tensorboard-2.18.0

  • tensorboard-data-server-0.7.2

  • Werkzeug-3.1.3

Other

  • aiohappyeyeballs-2.6.1

  • patsy-1.0.1

  • propcache-0.2.1

  • PyYAML-6.0.2

  • SQLAlchemy-2.0.37

  • xgboost-3.0.4

Building custom images#

This section provides instructions on how to build a custom image from the Starburst Spark base image.

Create a Dockerfile#

Create a Dockerfile using the official Starburst Spark image as the base:

FROM public.ecr.aws/starburstdata/dell-aidp/starburst-spark:4.0-22
RUN pip install pandas==2.1.0 requests==2.31.0
COPY custom-config.xml /opt/starburst/conf/
ENV CUSTOM_VAR="enabled"

The above example uses pip install to install additional Python libraries, copies a custom configuration called custom-config.xml to the /opt/starburst/conf/ path, and sets the environment variable to enabled.

See the Dockerfile documentation for more details on building Dockerfiles.

Push images to a registry#

Before importing a custom image into DDPE, you need to push it to a container registry.

On the Docker CLI, build your image and tag it for an external repository such as Docker Hub, AWS ECR, or GitHub Packages:

docker build -t your-org/custom-spark:v1.0
docker push your-org/custom-spark:v1.0

Use the tag, your-org/custom-spark:v1.0 in the above example, to reference your custom image when importing the image into DDPE.

Using custom images#

The following sections describe how to use Spark custom images:

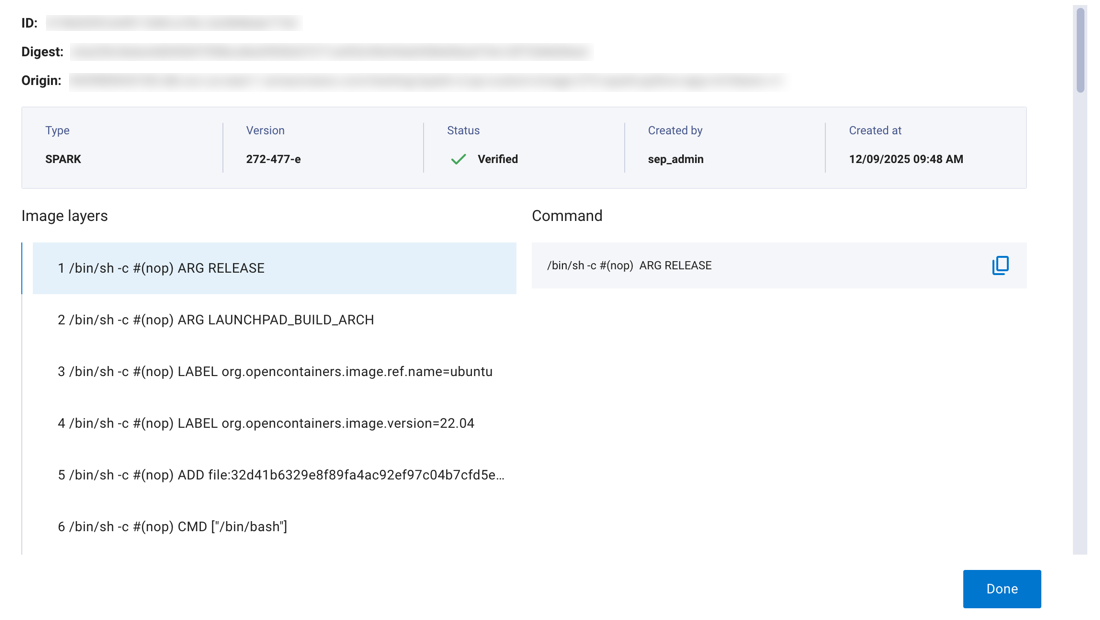

View image details#

In the Dell Data Processing Engine section of the UI, select Instance images.

The Instance images pane has two tabs:

  • Images: Displays all images in DDPE. Each entry shows the image name, Docker tag, type (SPARK or NOTEBOOK), version, status, and creation date. Use the options menu to manage individual images.

  • Imports: Displays the history of image imports. Each entry shows the image name, Docker tag, Docker repository, status, and creation date.

Click View details in the options menu to see important details about an image including the image layers and origin information:

View image layers

The following is displayed:

  • ID: A unique identifier assigned to the image within DDPE.

  • Digest: The SHA-256 hash of the Docker image.

  • Origin: The full URI of the source registry where the image was imported from.

The Image layers section includes an ordered list of image layers. Each layer in an image contains a set of filesystem changes such as additions or modifications.

Click any image layer to see the entire command.

See the official Docker documentation for more information about image layers.

Import images with DDPE UI#

To make a custom or third-party image available for use in your instances, it must first be imported into the internal registry using the image import process.

The import process has three steps: submitting the image details, waiting for processing to complete, and verifying the image is ready.

Submission#

  1. In the Dell Data Processing Engine section of the UI, select Instance images. Click + Create new image.

  2. Enter the information for the image:

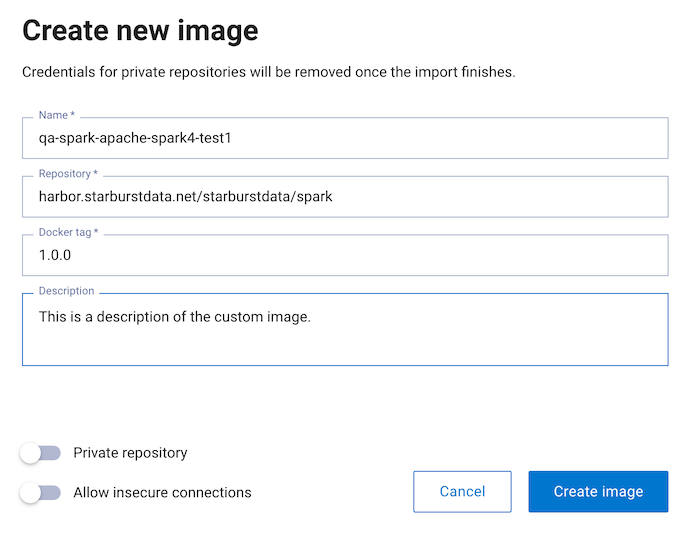

    Create new image form

    • Name: A unique identifier for the image. This name is used to reference the image when submitting jobs.

    • Repository: The full path to the container image repository, including the registry hostname.

    • Docker tag: The specific version tag of the image to import.

    • Description: Optional text description to help identify the purpose or contents of the custom image.

    • Private repository: Enable this toggle if the image is hosted in a private registry that requires authentication credentials.

      Note

      Credentials are removed once the import finishes.

    • Allow insecure connections: Enable this toggle to allow connections to registries without valid SSL/TLS certificates.

  3. Click Create image.

Processing#

In the processing stage, Dell Data Processing Engine fetches the image from the given repository, verifies its signature (if applicable), pushes it to the internal registry with a unique tag, and creates a new image record in the Awaiting verification state.

Verification#

A platform administrator can open the details menu for an image with the Awaiting verification status and determine whether it should be accepted or rejected. Rejecting an image marks it for deletion and makes the Delete option available:

Create new image form

Once verified, the image status changes to Accepted and it becomes available for use in your Spark jobs.

Image deletion considerations#

Consider the following before you delete an image:

  1. All working instances using a deleted image fail upon restart or scaling actions such as changing the number of Spark executor pods.

  2. Users and administrators must manually recreate all affected instances using a different, available image.

Warning

Before deleting a verified image, verify that no active workloads depend on it.

Using custom images in Spark jobs#

After your custom image has been imported and verified, you can use it when configuring Spark jobs in DDPE:

  1. Navigate to the Spark Jobs page in the DDPE UI.

  2. Select Create job or edit an existing job configuration.

  3. In the Image dropdown, select your verified custom image.

  4. Configure the remaining job parameters as needed.

  5. Select Submit to launch the job with your custom image.

Note

Only images with a status of Accepted in the DDPE image registry are available for use in Spark jobs. If your image does not appear in the dropdown, confirm that the import and verification process has completed successfully.

Access to unsigned and non-base images requires either the manage role or explicit permissions granted through BIAC.
